Westermo Ürün Kataloğu
WESTERMO Endüstriyel GPRS / EDGE / HSPA+ / 3G / 4 / LTE / 5G Modem Router
Westermo endüstriyel kablosuz hücresel yönlendirici serisi, esnek uzaktan erişim sağlar ve maliyetli saha ziyaretleri ihtiyacını ortadan kaldırır.
ÖNE ÇIKAN ÖZELLİKLER
- Taşımalı sistemler ( EN 50155 ), Trafo merkezleri ( IEC 61850-3 ), IoT ihtiyaçları, M2M bağlantı ihtiyaçları
- Güvenli VPN iletişimi, statik ve dinamik IP yönlendirme, NAT, port yönlendirme,
- OpenVPN (SSL VPN) ve durum bilgisi içeren paket inceleme güvenlik duvarı desteği,
- Zor çevre şartlarında kesintisiz iletişim
MODELLER
Westermo Endüstriyel Hücresel / Kablosuz Yönlendiriciler / Ağ Geçitleri ( Router / Gateway )
- MRD-405 : Industrial 4G LTE Gateway/Router
2 x 10/100 Mbit/s, RJ-45
1 x Mini-SIM slot - MRD-415 : Industrial 4G Router
2 x 10/100 Mbit/s, RJ-45
1 x RS-232 port, 300 bit/s – 115.2 kbit/s
1 x SIM slot - MRD-455 : Industrial 4G LTE Cellular Router – EMEA/APAC version
2 x 10/100 Mbit/s, RJ-45
1 x RS-232 port, 300 bit/s – 115.2 kbit/s
2 x Mini-SIM slots
Westermo Endüstriyel Kompakt Hücresel / Kablosuz Yönlendiriciler ( Router )
- GW1042W-X-QFR : Rugged Compact 4G/LTE Router with optional WiFi
2 x 10/100 Mbit/s, RJ-45
2 x SIM card slot
2 x SMA female WiFi antenna connector (optional) - GW2304-PE4-2DI2O-QFR : Industrial PoE+ LTE Router
4 x 100/1000 Mbit/s, PoE+, RJ-45
2 x Digital input
2 x Relay contact output
2 x Micro SIM card slot

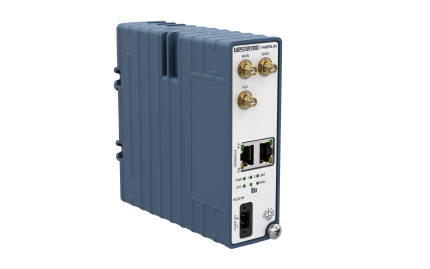

1 x GPS SMA female antenna connector - Merlin-4106-T4-S1-DI1 : Industrial Cellular Router
LTE Cat 4
Trusted Platform Module
Secure Boot
9.6 – 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input - Merlin-4106-T4-S1-DI1-QFT : Industrial Cellular Router
LTE Cat-M1/NB-IoT
Trusted Platform Module
Secure Boot
9.6 – 60V isolated power
4 x 100 Mbit/s RJ-45
2 x Mini SIM card slot
1 x dual-use port configurable to act either as RS232 or Digital Input - Merlin-4405-T4-LV : Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6V – 60V DC
4 x 10/100 Mbit/s Ethernet, RJ45
2 x Mini SIM slot
1 x GNSS SMA female antenna connector - Merlin-4407-T4-S2-LV : Industrial 4G LTE Cellular Router
Trusted Platform Module
Secure Boot
Isolated power input 9.6V – 60V DC
4 x 10/100 Mbit/s Ethernet, RJ45
2 x Serial ports RS-232/RS485
2 x Mini SIM slot
1 x GNSS SMA female antenna connector - Merlin-4605-T4-DI6-DO2-LV : Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
1 x GPS SMA female antenna connector - Merlin-4607-T4-S2-LV : Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
1 x GPS SMA female antenna connector - Merlin-4609-F2G-T4-S2-DI6-DO2-LV : Industrial IEC 61850-3 Cellular Router
LTE Cat 4
Trusted Platform Module
4 x 100 Mbit/s RJ-45 (4kV isolation, 5kV surge)
2 x 1000 Mbit/s SFP
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45
1 x GPS SMA female antenna connector - Merlin-4708-V-T4G-S2-DI6-DO2-LV-QFR : Industrial VDSL LTE Cellular Router
LTE Cat 4
Trusted Platform Module
1 x VDSL2/ADSL2+ Annex A, Annex B, RJ11
4 x GbE RJ-45
6 x Digital input
2 x Relay contact output
2 x Mini SIM card slot
2 x Serial port configurable as RS232 or RS485, RJ-45 - CyBox RT 2-A : Automotive Wireless Router with LTE CAT-7 and Wi-Fi 5
3×3 MIMO
11x QLS antenna connectors
5x 1 Gb ETH, RJ45 ports
1 GNSS
Power feed 12 to 24 VDC
Westermo EN 50155 Endüstriyel Hücresel / Kablosuz Ağ Geçitleri ( Gateway )
- CyBox GW 2-P : EN 50155 Mobile Wireless 5G Gateway
3×3 MU-MIMO
Up to 3 x 5G and up to 2 x Wi-Fi 11ac
4x SIM card slots for each 5G interface
2x 1 Gbps ports, M12 connectors
Up to 2x sockets for extensions (2.5 GbE, M.2 PCIe SSD)
Internal SSD up to 960 GB
Simultaneous Wi-Fi operation on 2.4 GHz and 5 GHz bands
Power feed 24 to 110 VDC - CyBox GW-P : EN 50155 Mobile Wireless LTE Gateway
3×3 MIMO
11x or 13x QLS connectors
Up to 5x LTE CAT-7
1 GNSS
4 SIM card slots per each LTE interface
2x 1 Gbps ports, M12 connectors
Power feed 24 to 110 VDC - Ibex-RT-330 : EN 50155 LTE Router and Mobile Communication Gateway
2×2 MIMO LTE-A Cat12
3 x QMA compatible connectors
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° – +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC
Westermo EN 50155 Endüstriyel Hücresel / Kablosuz Yönlendiriciler ( Router )
- CyBox LTE 2-W : EN 50155 LTE and Wi-Fi Router
3×3 MIMO LTE CAT-7
5x or 6x QLS or 3x SMA antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC - CyBox RT 3-W : EN 50155 5G and Wi-Fi 5 Router
4×4 MIMO
9x QLS antenna connectors
2x 1 Gbps ports, M12 connectors
4x SIM card slots
1 GNSS
Power feed 24 to 110 VDC - Ibex-RT-330-5G : EN 50155 5G Router
4×4 MIMO 5G 3GPP Rel 16
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° – +70°C operating range
Power feed LV: 24 VDC or PoE - Ibex-RT-630 : EN 50155 LTE and WLAN Router
2×2 MIMO LTE-A Cat-12
3×3 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° – +70°C operating range
Power feed LV: 24 VDC or PoE, HV: 72 to 110 VDC - Ibex-RT-630-5G : EN 50155 5G and WLAN Router
4×4 MIMO 5G 3GPP Rel 16
2×2 MIMO WLAN 2.4/5 GHz
1 x GNSS
2 x SIM card slots
2 x Gbps ports, M12 connectors
IP66 and -40° – +70°C operating range
Power feed LV: 24 VDC or PoE
