WELOTEC Trafo Merkezleri İçin Endüstriyel Bilgisayarlar
WELOTEC; “ Energy Infrastructure Revolution “ temel konsepti ile “ Future of the Powergrid “, “ Substation Automation “, “ Redefining Power – Virtualize Your Substation Applications “ başlıkları altında; Rugged Substation Automation Server, Rugged Substation Automation Virtualization Platform, Rugged Substation Automation Computer RSAPC Mk2, Rugged Substation Automation Edge Controller RSAEC, Rugged Substation Automation Edge Controller RSAEC Mk2, HSR/PRP Time-aware Redbox-DAN PCIe Network Card vb… IEC 81850-3 ve IEEE 1613 sertifikalı ürünleri ile Enerji sektörüne özel çözümler sunmaktadır.
Rugged Substation Automation Computer RSAPC Mk2 for the automation of substations ( Both IEC 61850-3 and IEEE 1613 certified );
- IEC 61850-3 Rugged Substation Automation Computer
- Fanless 19 inch 2U rackmount industrial computer
- -40 to +70 °C operating temperature range with integrated heating
- 11th Gen Intel Xeon Tiger Lake-H Processor (6C/12T or 8C/16T)
- TPM 2.0 module
- Fanless system: Advanced passive cooling system provides fanless operation even under full load and in harsh environments.
- IEC 61850-3 and IEEE 1613: Rugged system specially made for power substations.
- Virtualization: Powerful system enables the reduction of hardware in the substation through the use of virtualization.
- Intel Xeon CPU: Despite it’s fanless design, the RSAPC Mk2 uses an Intel Xeon 8-core or 6-core CPU.
- Rack mount: Convenient 19 inch 2U rack mount form factor for space saving operation in a closed cabinet.
- Operating temperature: Wide operating temperature range for trouble-free operation in harsh environments.
- …
Rugged Substation Automation Virtualization Platform ( Both IEC 61850-3 and IEEE 1613 certified );
Virtualize Everything:
Designed for high-performance computing at the substation edge, this platform features active ventilation with industrial-grade fans to maintain optimal thermal conditions.
It supports virtualized workloads and real-time applications without compromising stability or efficiency.
- IEC 61850-3 and IEEE 1613: Rugged system specially made for power substations.
- Virtualization: Powerful system with up to 64 CPU Cores and 512 Gb RAM enables the reduction of hardware in the substation through the use of virtualization.
- Active Cooling: Active cooling allows high-core CPU and high-performance expansion cards to be used in challenging environmental conditions.
- Redundant Power Supply: Features a redundant power supply with a range of 110 to 240 V AC and DC.
- …

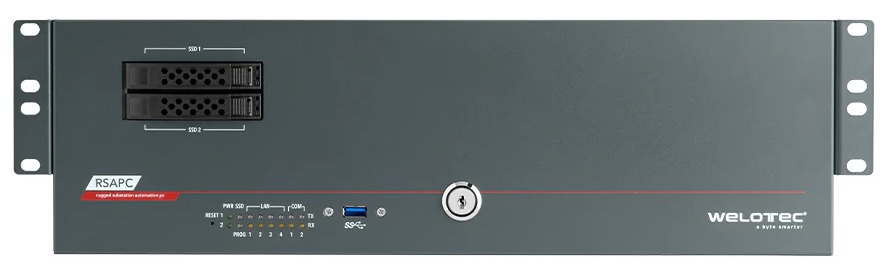

Rugged Substation Automation Computer RSAPC for the automation of substations ( Both IEC 61850-3 and IEEE 1613 certified );
- IEC 61850-3 Rugged Substation Automation Computer
- Fanless 19 inch 3U rackmount industrial computer
- -40 to +75 °C operating temperature range with integrated heating
- Intel Xeon with four cores / eight threads ( Kabi Lake, 7. Generation )
- TPM 2.0 module
- …
Rugged Substation Automation Edge Controller RSAEC for the automation of substations ( Both IEC 61850-3 and IEEE 1613 certified );
- IEC 61850-3 Rugged Substation Automation Edge Controller
- -40 to +70 °C operating temperature range
- Intel Atom® x7-E3950 with 4 cores (Apollo Lake)
- On board TPM 2.0 module and Secure Boot for improved Cybersecuity
- Operating temperature: Very wide operating temperature range from -40 to +70 °C and an integrated heating for trouble free operation in the harshest environments.
- Din-Rail Mounting: Designed to be used in switching cabinets with DIN-Rail mounting.
- Intel Atom CPU: Low power, high performance Intel Atom 4-core CPU (Elkhart Lake).
- IEC 61850-3 and IEEE 1613: Rugged system specially made for power substations.
- TPM 2.0 Module: Integrated Trusted Platform Modul for secure device provisioning and authentication.
- Wide DC-in range: 20 – 54 V DC input for maximum power supply flexibilty.
- …
Rugged Substation Automation Computer RSAPC Mk2 for the automation of substations ( Both IEC 61850-3 and IEEE 1613 certified );
- IEC 61850-3 Rugged Substation Automation Computer
- Fanless 19 inch 2U rackmount industrial computer
- -40 to +70 °C operating temperature range with integrated heating
- 11th Gen Intel Xeon Tiger Lake-H Processor (6C/12T or 8C/16T)
- TPM 2.0 module
- Fanless system: Advanced passive cooling system provides fanless operation even under full load and in harsh environments.
- IEC 61850-3 and IEEE 1613: Rugged system specially made for power substations.
- Virtualization: Powerful system enables the reduction of hardware in the substation through the use of virtualization.
- Intel Xeon CPU: Despite it’s fanless design, the RSAPC Mk2 uses an Intel Xeon 8-core or 6-core CPU.
- Rack mount: Convenient 19 inch 2U rack mount form factor for space saving operation in a closed cabinet.
- Operating temperature: Wide operating temperature range for trouble-free operation in harsh environments.
- …
Ideal Companions in Demanding Environments
The Rugged Substation Automation Devices by Welotec consistently meet the requirements of the IEC 61850-3 standard. They fulfill the EMI/RFI resistance requirements specified in the standard, thereby ensuring interference-free operation in electromagnetically demanding environments. The specifications for network and data interfaces are also met, enabling efficient and reliable communication. This makes the Welotec Rugged Substation Automation Devices ideal for demanding use in substations.
Our RSAPC servers also meet certifications such as IEEE 1613, as well as CE/FCC/UL/CB where applicable. Their fanless design with no moving parts ensures reliable and long-lasting operation
